Eldema Q series are positive panel mounting for standard T 1-3/4 lamps.

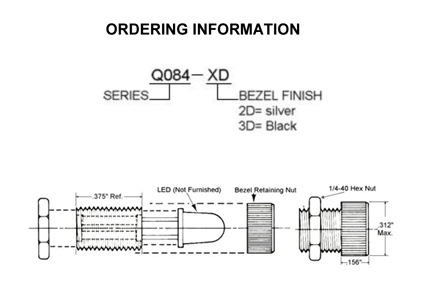

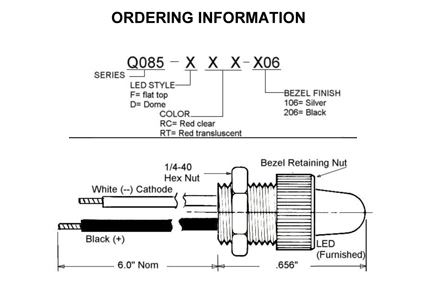

The Q084series is a low cost LED mounting assembly kit. The Q085 series
Is a complete LED indicator lite with flexible leads, available in all colors

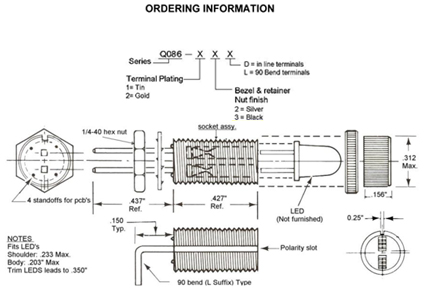

The Q086 is a universally relampable LED socket assembly and is available with either in-line or 90° terminal. Its 0.025 square pins make it ideal for wire wrap or printed circuit board mounting. The Q series mounts in standard, none- critical ¼ diameter holes in panels up to 0.187” thick, are attractive in appearance without additional bezels and are ideal for array designs.

Reduce your cost and simplify the installation of LED lamps with this unique

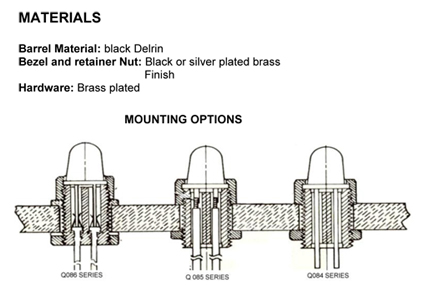

Mountings, plug-in sockets and complete indicator lite assemblies. They are easily mounted from either panel front or rear through standard ¼” holes
(no critical tolerance). Lamps can be installed or replaced from the panel front. Their rugged and reliable construction, along with their design flexibility make these units ideal for applications where economy, ease of installation, attractive appearance and dependability are prime considerations.
